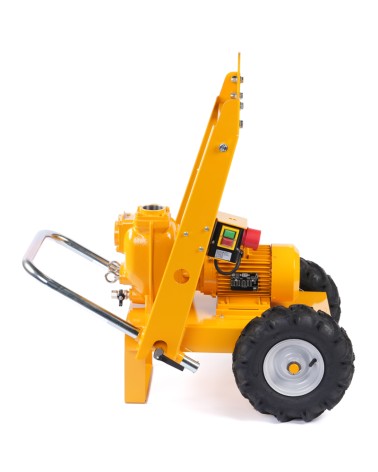

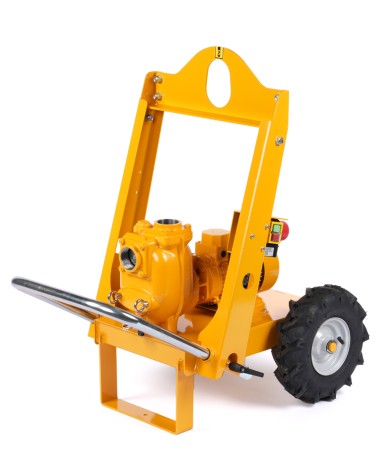

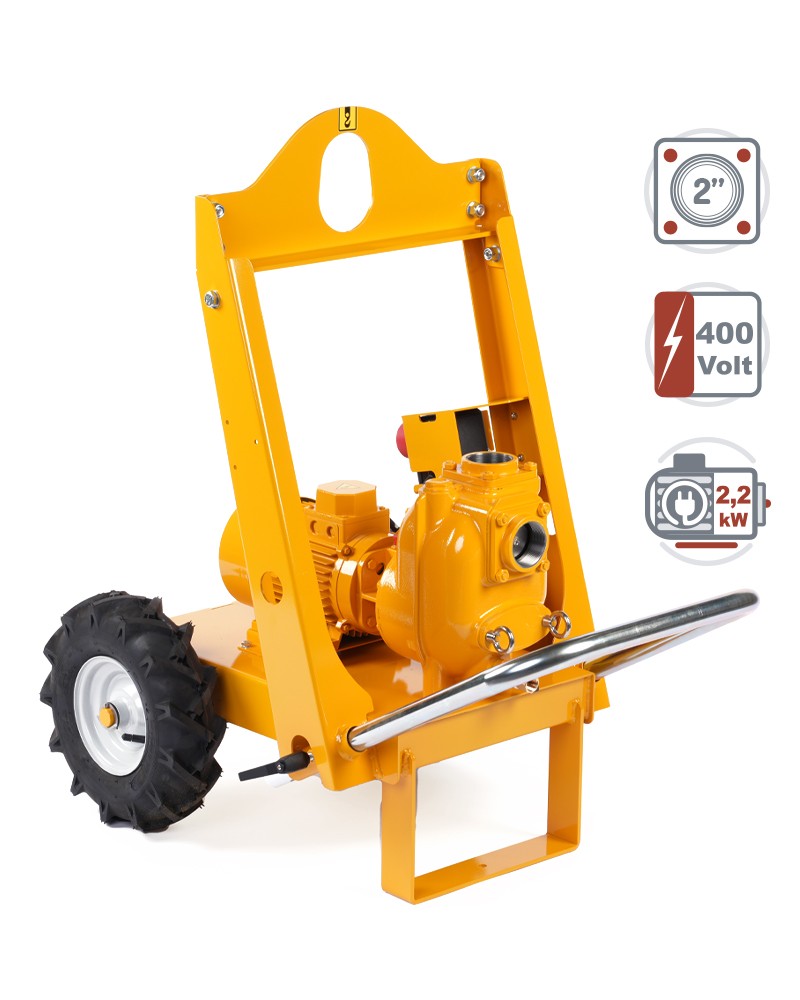

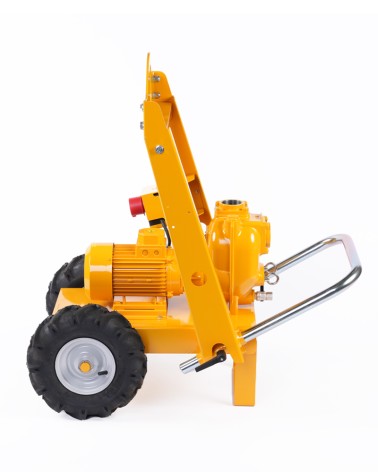

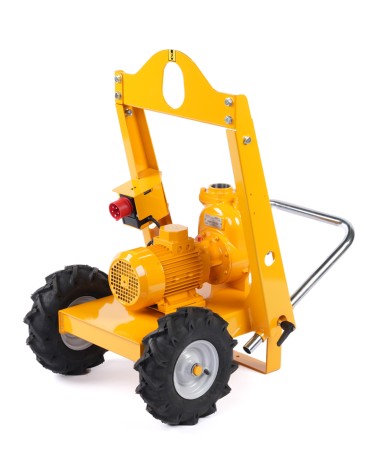

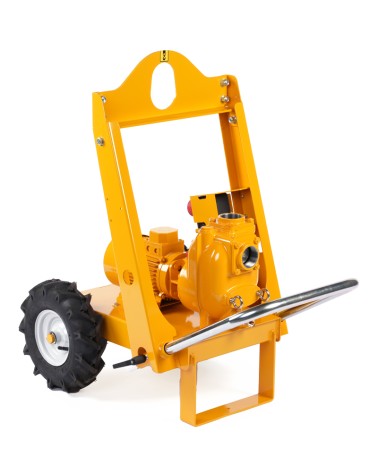

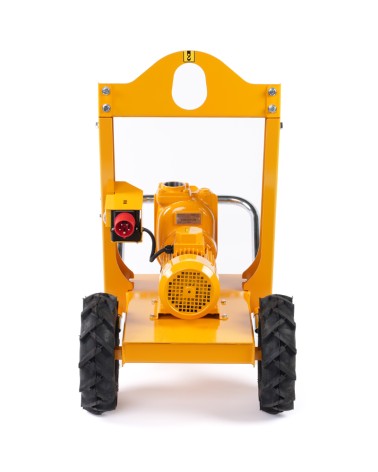

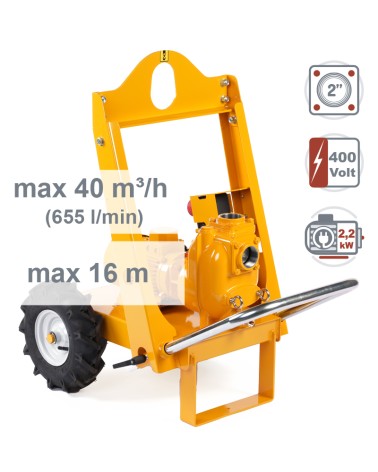

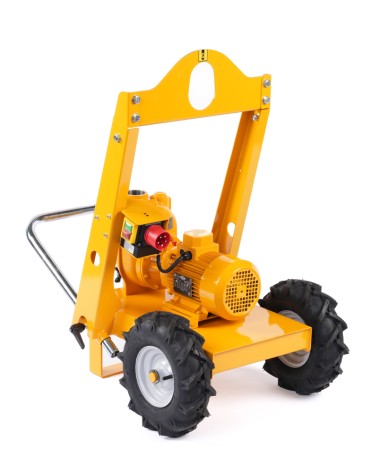

Trolley with lifting hook and rubber wheels assembled with three-phase electric motor and self-priming centrifugal pump Type Victor Pumps S 50 (Q max: 40 m³/h; H max: 16 m) with following features:
→ 8" rubber wheel with Tractor Profile
→ Close-coupled
→ Control-panel with On/Off switch with 7 Amp termistors, IEC plug 5 Pin 16 Amp with phase inverter
→ PinoPumps standard stainless steel name plate with product name and serial number
TA3 E S050 - 1350 001
1350 001
REGISTER TO BUY
Please register to see prices and delivery times
Trolley with lifting hook and rubber wheels assembled with three-phase electric motor and self-priming centrifugal pump Type Victor Pumps S 50 (Q max: 40 m³/h; H max: 16 m) with following features:
→ 8" rubber wheel with Tractor Profile
→ Close-coupled
→ Control-panel with On/Off switch with 7 Amp termistors, IEC plug 5 Pin 16 Amp with phase inverter
→ PinoPumps standard stainless steel name plate with product name and serial number
1350 001
Specifications
Main Features |
|
|---|---|
| Pump Flow Rate | max 40 m³/h (655 l/min) |
| Pump head | max 15 m |
| Max. Solids Handling | 25 mm |
| Self-priming | ★★★☆☆ |
| Heavy-duty | ★★★★☆ |
| Frame | TA3 single-axle trolley |
Frame |
|
|---|---|
| Type of Tyre | 8" rubber wheel with Tractor Profile |
| Suitable for solid ground | Yes |
| Suitable for muddy and sandy terrains | Yes |
| Lifting hook | Yes |
| Can be moved by hand | Yes |
| Can be towed with a vehicle | Yes |
| Towing bar with hook | No |
Pump |
|
|---|---|
| Type of Pump | Self-priming centrifugal pump |
| Pump manufacturer | Victor Pumps |
| Suction port | 2'' |
| Discharge port | 2'' |
| Type of ports | Female Thread BSP |
| Type of self-priming | Wet-prime |
| Inspection cover for the impeller | Yes |
| Filling port | Yes |
| Drain Port | Yes |
| Plug for Vacumeter | No |
| Plug for the Manometer | No |
| Material of casing | Cast iron |
| Material of impeller | Cast iron |
| Material of wear plate | Steel |
| Material of shaft | Stainless steel AISI304 |
| Material of non-return valve | NBR |
| Shaft sealing | YCV Mechanical Seal with Grease Lubrication in SiC/SiO₂/FKM (Viton®) on Stainless Steel Sleeve |
Performance data |
|
|---|---|
| Max vacuum with water | max 8 m (9, 5 m for 10 min) |
| Max vacuum with air | max 8, 5 m |
Additional Features |
|
|---|---|
| Plug | IEC 16 Amp, 5 Pin with Phase inversion |
| Paint | RAL1006 maize yellow |
| External Dimensions (L x W x H) | 689 x 629 x 1004 mm |
| Net Weight | 91 kg |
